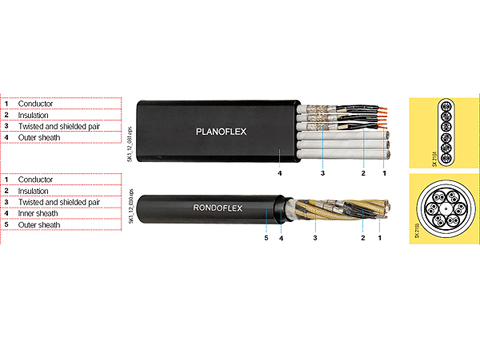

RONDOFLEX 托令電纜
產品描述
Selection and ordering data
| Number of cores and nominal cross-section mm2 | Order No. | conductor diameter (guidance value) mm | Overall diameter of cable | Approx. net weight for 1000 m kg | Maximum permissible tensile force N | |
|
Min. value (guidance value)mm |
Max. value (guidance value)mm |
|||||
| NGFLGOU-J power cables | ||||||
| 4× 4* | 5DG5 731 | 2.8 | 8.5×23.0 | 9.0×24.0 | 402 | 240 |
| 4× 6* | 5DG5 741 | 3.5 | 9.1×25.5 | 9.6×27.0 | 510 | 360 |
| 4×10* | 5DG5 765 | 4.5 | 10.5×31.3 | 11.3×32.8 | 770 | 600 |
| 4×16* | 5DG5 766 | 5.6 | 12.2×36.1 | 13.0×37.6 | 1160 | 960 |
| 4×25* | 5DG5 767 | 6.6 | 13.7×42.3 | 14.5×43.8 | 1560 | 1500 |
| 4×35* | 5DG5 768 | 8.1 | 15.8×48.8 | 16.8×50.3 | 2100 | 2100 |
| 4×50* | 5DG5 770 | 9.7 | 18.3×57.0 | 19.3×59.0 | 2930 | 3000 |
| 4×70* | 5DG5 771 | 11.2 | 20.5×64.0 | 21.5×66.0 | 3910 | 4200 |
| 4×95 | 5DG5 772 | 13.1 | 23.5×74.2 | 24.5×76.2 | 5120 | 5700 |
| 7× 4* | 5DG5 734 | 2.8 | 8.5×38.5 | 9.0×40.9 | 720 | 420 |
| 7× 6* | 5DG5 744 | 3.5 | 9.1×42.9 | 9.6×45.3 | 910 | 630 |
| 7×10 | 5DG5 865 | 4.5 | 10.5×53.0 | 11.3×55.9 | 1370 | 1050 |
| 7×16 | 5DG5 866 | 5.6 | 12.6×60.7 | 13.4×63.9 | 1990 | 1680 |
| 7×25 | 5DG5 867 | 6.6 | 14.9×73.7 | 15.7×76.6 | 2930 | 2625 |
| 7×35 | 5DG5 868 | 8.1 | 16.4×83.7 | 17.4×87.0 | 3820 | 3675 |
| NGFLGoU - J control cables | ||||||
| 3×1.5 | 5DG5 751 | 1.5 | 5.5×11.7 | 6.0×12.5 | 126 | 68 |
| 4×1.5* | 5DG5 711 | 1.5 | 5.7×15.0 | 6.2×15.8 | 171 | 90 |
| 5×1.5* | 5DG5 712 | 1.5 | 5.5×18.5 | 6.0×20.1 | 214 | 113 |
| 7×1.5* | 5DG5 714 | 1.5 | 5.5×25.0 | 6.0×26.8 | 292 | 158 |
| 8×1.5* | 5DG5 715 | 1.5 | 5.5×27.5 | 6.0×28.3 | 325 | 180 |
| 10×1.5* | 5DG5 717 | 1.5 | 6.2×35.5 | 6.7×37.0 | 455 | 225 |
| 12×1.5* | 5DG5 718 | 1.5 | 6.3×42.0 | 6.8×43.5 | 550 | 270 |
| 24×1.5* | 5DG5 720 | 1.5 | 11.3×50.5 | 12.1×52.7 | 1050 | 540 |
| 4×2.5* | 5DG5 721 | 2.0 | 6.8×18.6 | 7.4×19.6 | 257 | 150 |
| 5×2.5* | 5DG5 722 | 2.0 | 6.8×22.9 | 7.4×24.6 | 332 | 188 |
| 7×2.5* | 5DG5 724 | 2.0 | 6.8×31.0 | 7.4×32.8 | 452 | 263 |
| 8×2.5* | 5DG5 725 | 2.0 | 6.8×34.1 | 7.4×35.9 | 510 | 300 |
| 12×2.5* | 5DG5 728 | 2.0 | 7.0×50.6 | 8.0×53.5 | 810 | 450 |
| 24×2.5* | 5DG5 730 | 2.0 | 15.0×68.6 | 15.8×69.2 | 1730 | 900 |
| (N)GFLGOU - O shielded cables | ||||||
| 12×1(C) | 5DG5 670 | 1.3 | 6.6×48.2 | 7.1×51.3 | 653 | 180 |
| 4×1.5(C)* | 5DG5 880 | 1.5 | 6.9×18.5 | 7.4×19.5 | 250 | 90 |
| 8×1.5(C)* | 5DG5 884 | 1.5 | 6.9×35.1 | 7.4×37.8 | 510 | 180 |
| 12×1.5(C) | 5DG5 888 | 1.5 | 7.5×51.8 | 8.0×55.6 | 820 | 270 |
| 4×(2×1)C* | 5DG5 890 | 1.3 | 10.6×31.8 | 11.4×33.8 | 663 | 120 |
| 6×(2×2.5)C | 5DG5 898 | 2.0 | 14.8×61.5 | 15.6×65.1 | 1800 | 450 |
Selection and ordering data
| Number of cores and nominal cross-section mm2 | Order No. | conductor diameter (guidance value) mm | Overall diameter of cable | Approx. net weight for 1000 m kg | Maximum permissible tensile force N | |
|
Min. value (guidance value)mm |
Max. value (guidance value)mm |
|||||
| NGRDGOU - O power cables, single-core design | ||||||
| 1×35* | 5DG6 611 | 8.1 | 12.3 | 13.9 | 430 | 525 |
| 1×50* | 5DG6 612 | 9.6 | 15.0 | 16.6 | 625 | 750 |
| 1×70* | 5DG6 613 | 11.2 | 16.5 | 18.5 | 835 | 1050 |
| 1×95* | 5DG6 614 | 13.2 | 18.9 | 20.9 | 1070 | 1425 |
| 1×120* | 5DG6 615 | 14.9 | 20.8 | 22.8 | 1340 | 1800 |
| 1×150* | 5DG6 616 | 16.6 | 22.9 | 24.9 | 1650 | 2250 |
| 1×185* | 5DG6 617 | 18.0 | 24.8 | 27.8 | 2010 | 2775 |
| NGRDGOU - J power cables, four and five-core design | ||||||
| 4× 4* | 5DG6 642 | 3.0 | 13.9 | 15.5 | 350 | 240 |
| 4× 6* | 5DG6 643 | 3.2 | 15.9 | 17.9 | 475 | 360 |
| 4×10* | 5DG6 644 | 4.2 | 18.2 | 20.2 | 680 | 600 |
| 4×16* | 5DG6 645 | 5.7 | 22.9 | 24.9 | 1070 | 960 |
| 4×25* | 5DG6 646 | 6.8 | 26.9 | 29.9 | 1600 | 1500 |
| 4×35* | 5DG6 647 | 8.1 | 30.1 | 33.1 | 2090 | 2100 |
| 4×50* | 5DG6 648 | 9.6 | 35.7 | 38.7 | 2970 | 3000 |
| 5× 4* | 5DG6 652 | 3.0 | 15.7 | 17.7 | 450 | 300 |
| 5× 6* | 5DG6 653 | 3.2 | 17.5 | 19.5 | 575 | 450 |
| 5×10* | 5DG6 654 | 4.2 | 20.8 | 22.8 | 865 | 750 |
| 5×16* | 5DG6 655 | 5.7 | 24.6 | 27.6 | 1300 | 1200 |
| 5×25* | 5DG6 656 | 6.8 | 29.5 | 32.5 | 1940 | 1875 |
| NGRDGOU - J power cables, three-core design with protective-earth conductor split into 3 | ||||||
| 3×35+3×16/3 | 5DG6 631 | 8.1 | 27.7 | 30.7 | 1800 | 1575 |
| 3×50+3×25/3 | 5DG6 632 | 9.7 | 32.5 | 35.5 | 2540 | 2250 |
| 3×70+3×35/3 | 5DG6 633 | 11.2 | 39.1 | 42.1 | 3570 | 3150 |
| NGRDGOU-J control cables | ||||||
| 12×1.5 | 5DG6 662 | 1.6 | 16.2 | 18.2 | 440 | 270 |
| 18×1.5 | 5DG6 663 | 1.6 | 18.7 | 20.7 | 615 | 405 |
| 24×1.5* | 5DG6 664 | 1.6 | 22.1 | 24.1 | 805 | 540 |
| 30×1.5 | 5DG6 665 | 1.6 | 23.3 | 25.3 | 930 | 675 |
| 36×1.5 | 5DG6 666 | 1.6 | 24.6 | 27.6 | 1090 | 810 |
| 12×2.5* | 5DG6 672 | 2.0 | 17.9 | 19.9 | 580 | 450 |
| 18×2.5* | 5DG6 673 | 2.0 | 21.5 | 23.5 | 865 | 650 |
| 24×2.5* | 5DG6 674 | 2.0 | 24.0 | 27.0 | 1110 | 900 |
| 30×2.5* | 5DG6 675 | 2.0 | 26.4 | 29.4 | 1330 | 1125 |
| 36×2.5 | 5DG6 676 | 2.0 | 28.4 | 31.4 | 1550 | 1350 |
| NGRDGOU-O bus cables | ||||||
| 6×(2×0.5)* | 5DG6 693 | 0.9 | 22.1 | 25.1 | 850 | 180 |
| 6×(2×1)C* | 5DG6 694 | 1.3 | 28.1 | 31.1 | 1250 | 180 |
| 9×(2×0.5)C* | 5DG6 691 | 0.9 | 28.3 | 31.3 | 1340 | 270 |
| 9×(2×1)C* | 5DG6 692 | 1.3 | 35.9 | 38.9 | 2010 | 270 |
| 12×1(C) | 5DG6 681 | 1.3 | 18.0 | 20.0 | 590 | 180 |
