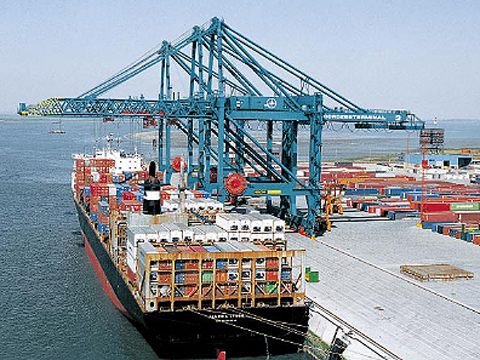

產品覆蓋全國港機重工、集裝箱碼頭、電廠、航運、鋼鐵廠及礦山等各大企業。

世界知名品牌

主要經營意大利ARISTONCAVI柔性電纜、德國PRYSMIAN柔性電纜、德國BROSA傳感器、HARTMAN電纜卷筒及集電環、日本神鋼鋼絲繩和德國DIEPA鋼絲繩等機電、機械產品

深受廣大港口碼頭及各種重工生產制造商的歡迎

首頁

/

產品分類

/

德國普睿斯曼電纜

/

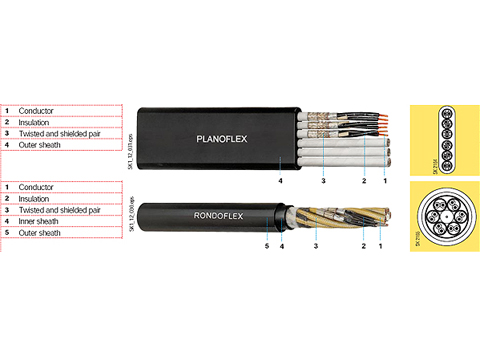

PLANOFLEX托令扁電纜





產品描述

Selection and ordering data

Number of cores and nominal dimensions mm2	Order No.	Conductor diameter (guidance value) mm	Overall diameter of cable		Approx. net weight for 1000 m kg	Maximum permissible tensile force N
Number of cores and nominal dimensions mm2	Order No.	Conductor diameter (guidance value) mm	Min. value (guidance value)mm	Max. value (guidance value)mm	Approx. net weight for 1000 m kg	Maximum permissible tensile force N
NGFLGOU-J power cables
4×4*	5DG5 731	2.8	8.5×23.0	9.0×24.0	402	240
4×6*	5DG5 741	3.5	9.1×25.5	9.6×27.0	510	360
4×10*	5DG5 765	4.5	10.5×31.3	11.3×32.8	770	600
4×16*	5DG5 766	5.6	12.2×36.1	13.0×37.6	1160	960
4×25*	5DG5 767	6.6	13.7×42.3	14.5×43.8	1560	1500
4×35*	5DG5 768	8.1	15.8×48.8	16.8×50.3	2100	2100
4×50*	5DG5 770	9.7	18.3×57.0	19.3×59.0	2930	3000
4×70*	5DG5 771	11.2	20.5×64.0	21.5×66.0	3910	4200
4×95	5DG5 772	13.1	23.5×74.2	24.5×76.2	5120	5700
7×4*	5DG5 734	2.8	8.5×38.5	9.0×40.9	720	420
7×6*	5DG5 744	3.5	9.1×42.9	9.6×45.3	910	630
7×10	5DG5 865	4.5	10.5×53.0	11.3×55.9	1370	1050
7×16	5DG5 866	5.6	12.6×60.7	13.4×63.9	1990	1680
7×25	5DG5 867	6.6	14.9×73.3	15.7×76.6	2930	2625
7×35	5DG5 868	8.1	16.4×83.7	17.4×87.0	3820	3675
NGFLGOU-J control cables
3×1.5	5DG5 751	1.5	5.5×11.7	6.0×12.5	126	68
4×1.5*	5DG5 711	1.5	5.7×15.0	6.2×15.8	171	90
5×1.5*	5DG5 712	1.5	5.5×18.5	6.0×20.1	214	113
7×1.5*	5DG5 714	1.5	5.5×25.0	6.0×26.8	292	158
8×1.5*	5DG5 715	1.5	5.5×27.5	6.0×28.3	325	180
10×1.5*	5DG5 717	1.5	6.2×35.5	6.7×37.0	455	225
12×1.5*	5DG5 718	1.5	6.3×42.0	6.8×43.5	550	270
24×1.5*	5DG5 720	1.5	11.3×50.5	12.1×52.7	1050	540
4×2.5*	5DG5 721	2.0	6.8×18.6	7.4×19.6	257	150
5×2.5*	5DG5 722	2.0	6.8×22.9	7.4×24.6	332	188
7×2.5*	5DG5 724	2.0	6.8×31.0	7.4×32.8	452	263
8×2.5*	5DG5 725	2.0	6.8×34.1	7.4×35.9	510	300
12×2.5*	5DG5 728	2.0	7.0×50.6	8.0×53.5	810	450
24×2.5*	5DG5 730	2.0	15.0×68.6	15.8×69.2	1730	900
NGFLGOU-O shielded cables Individually shielded cores/twisted and shielded pairs
12×1 (C)	5DG5 670	1.3	6.6×48.2	7.1×51.3	653	180
4×1.5 (C)*	5DG5 880	1.5	6.9×18.5	7.4×19.5	250	90
8×1.5 (C)*	5DG5 884	1.5	6.9×35.1	7.4×37.8	510	180
12×1.5 (C)	5DG5 888	1.5	7.5×51.8	8.0×55.6	820	270
4×(2×1) C*	5DG5 890	1.3	10.6×31.8	11.4×33.8	663	120
6×(2×2.5) C	5DG5 898	2.0	14.8×61.5	15.6×65.1	1800	450

Number of cores and nominal dimensions mm2	Order No.	Conductor diameter (guidance value) mm	Overall diameter of cable		Approx. net weight for 1000 m kg	Maximum permissible tensile force N
Number of cores and nominal dimensions mm2	Order No.	Conductor diameter (guidance value) mm	Min. value (guidance value)mm	Max. value (guidance value)mm	Approx. net weight for 1000 m kg	Maximum permissible tensile force N
NGRDGOU-O power cables, single-core design
1×35*	5DG6 611	8.1	12.3	13.9	430	525
1×50*	5DG6 612	9.6	15.0	16.6	625	750
1×70*	5DG6 613	11.2	16.5	18.5	835	1050
1×95*	5DG6 614	13.2	18.9	20.9	1070	1425
1×120*	5DG6 615	14.9	20.8	22.8	1340	1800
1×150*	5DG6 616	16.6	22.9	24.9	1650	2250
1×185*	5DG6 617	18.0	24.8	27.8	2010	2775
NGRDGOU-J power cables, four and five-core design
4×4*	5DG6 642	3.0	13.9	15.5	350	240
4×6*	5DG6 643	3.2	15.9	17.9	475	360
4×10*	5DG6 644	4.2	18.2	20.2	680	600
4×16*	5DG6 645	5.7	22.9	24.9	1070	960
4×25*	5DG6 646	6.8	26.9	29.9	1600	1500
4×35*	5DG6 647	8.1	30.1	33.1	2090	2100
4×50*	5DG6 648	9.6	35.7	38.7	2970	3000

5×4*	5DG6 652	3.0	15.7	17.7	450	300
5×6*	5DG6 653	3.2	17.5	19.5	575	450
5×10*	5DG6 654	4.2	20.8	22.8	865	750
5×16*	5DG6 655	5.7	24.6	27.6	1300	1200
5×25*	5DG6 656	6.8	29.5	32.5	1940	1875
NGRDGOU-J power cables, three-core design with protective-earth conductor split into 3
3×35+3×16/3	5DG6 631	8.1	27.7	30.7	1800	1575
3×50+3×25/3	5DG6 632	9.7	32.5	35.5	2540	2250
3×70+3×35/3	5DG6 633	11.2	39.1	42.1	3570	3150
NGRDGOU-J control cables
12×1.5	5DG6 662	1.6	16.2	18.2	440	270
18×1.5	5DG6 663	1.6	18.7	20.7	615	405
24×1.5*	5DG6 664	1.6	22.1	24.1	805	540
30×1.5	5DG6 665	1.6	23.3	25.3	930	675
36×1.5	5DG6 666	1.6	24.6	27.6	1090	810

12×2.5*	5DG6 672	2.0	17.9	19.9	580	450
18×2.5*	5DG6 673	2.0	21.5	23.5	865	650
24×2.5*	5DG6 674	2.0	24.0	27.0	1110	900
30×2.5*	5DG6 675	2.0	26.4	29.4	1330	1125
36×2.5	5DG6 676	2.0	28.4	31.4	1550	1350
NGRDGOU-O bus cables
6×(2×0.5)C*	5DG6 693	0.9	22.1	25.1	850	180
6×(2×1)C*	5DG6 694	1.3	28.1	31.1	1250	180
9×(2×0.5)*	5DG6 691	0.9	28.3	31.3	1340	270
9×(2×1)C*	5DG6 692	1.3	35.9	38.9	2010	270
12×1(C)	5DG6 681	1.3	18.0	20.0	590	180
